In the rapidly evolving world of automotive diagnostics, having the right tools is essential for precision. In 2026, oscilloscopes with automotive probes are set to revolutionize the way technicians approach complex systems. From advanced handheld models to user-friendly designs, these tools offer features that enhance usability and mobility. But what exactly should you look for when choosing the ideal oscilloscope for your needs? Let’s explore the top contenders that are making waves in the industry this year.
3 in 1 Handheld Oscilloscope with Digital Multimeter and Signal Generator
If you’re an automotive technician or hobbyist looking for a versatile tool, the 3 in 1 Handheld Oscilloscope with Digital Multimeter and Signal Generator is the perfect choice. This device features a dual-channel oscilloscope that efficiently measures various waveforms, equipped with an AUTO recognition function to simplify your tasks. With two operational modes, you can select between high-speed or normal settings to suit your needs. The multimeter offers 25,000 counts for precise measurements of resistance and capacitance. Plus, the signal generator outputs multiple wave types, making it invaluable for diagnostics. Don’t forget to consult the user manual for ideal use!
Best For: Automotive technicians and hobbyists seeking a multifunctional tool for waveform analysis and electronic measurements.
Pros:
- Dual-channel oscilloscope allows for versatile waveform measurement and analysis.
- High precision multimeter with 25,000 counts enhances accuracy across various electronic measurements.
- Compact and portable design makes it easy to use in different settings, perfect for on-the-go diagnostics.
Cons:
- May require a learning curve due to its multifunctionality and various features.
- Limited battery life during extended use could necessitate frequent recharging.
- The user manual might be essential for optimal usage, which could be inconvenient for some users.
FNIRSI DSO152 Handheld Oscilloscope
The FNIRSI DSO152 Handheld Oscilloscope stands out as an excellent choice for automotive technicians and hobbyists alike, thanks to its impressive 200 KHz bandwidth and 2.5 MS/s sampling rate. Its lightweight, portable design makes it easy to carry around, perfect for on-the-go diagnostics. You’ll appreciate the user-friendly features, like the one-key AUTO setting for quick waveform display and baseline calibration. With a maximum voltage measurement of 800 VPP, it handles a variety of tasks efficiently. Plus, the built-in 1000 mAh lithium battery guarantees about four hours of continuous use, keeping you powered up during your projects.
Best For: The FNIRSI DSO152 Handheld Oscilloscope is best for automotive technicians and hobbyists seeking a portable and user-friendly diagnostic tool.
Pros:
- Lightweight and portable design, ideal for on-the-go use.
- User-friendly features such as one-key AUTO setting for quick waveform display.
- Capable of measuring up to 800 VPP, accommodating a variety of tasks.
Cons:
- Limited bandwidth of 200 KHz may not suffice for advanced applications.
- Continuous usage time of about 4 hours may require frequent recharging for extended projects.
- LCD display resolution of 320 x 240 may not be as sharp as higher-end models.

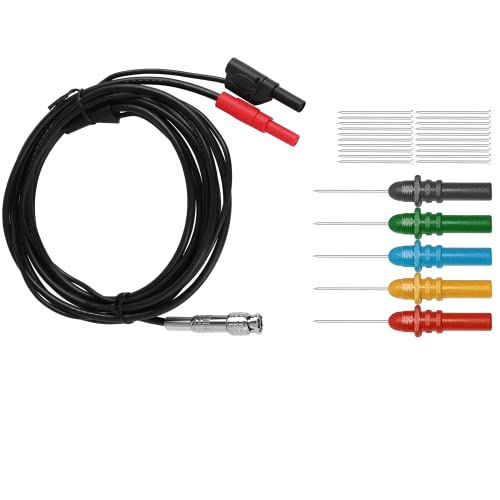

Hantek HT30A+HT307 Auto Test Leads and Acupuncture Probe Set
For automotive technicians seeking precision and ease in electrical measurements, the Hantek HT30A+HT307 Auto Test Leads and Acupuncture Probe Set stands out. This set includes specialized auto test leads for diverse signals and a heavy-duty design that lets you position your oscilloscope away from the vehicle. The HT307 features back pinning and piercing capabilities, allowing you to safely probe small connectors without damaging wire insulation. Together, these tools meet all your oscilloscope testing demands, making them essential for diagnostics and repairs in both vehicles and small circuits. You’ll appreciate the efficiency and accuracy they bring to your work.
Best For: Automotive technicians looking for precision and ease in electrical measurements.
Pros:
- Heavy-duty design allows for the oscilloscope to be positioned away from the vehicle, enhancing accessibility during testing.
- HT307’s piercing capabilities enable safe probing of small connectors without damaging wire insulation, making it ideal for delicate measurements.
- Versatile compatibility with various oscilloscope models ensures it meets diverse testing demands in automotive diagnostics.
Cons:
- Limited to automotive applications, which may not appeal to technicians working in other fields.
- Initial cost may be higher compared to standard test leads, potentially deterring budget-conscious buyers.
- Requires familiarity with oscilloscope operation, which may pose a learning curve for beginners.
FNIRSI 1013D Plus Portable Handheld Oscilloscope
Engineers and hobbyists looking for a portable solution will find the FNIRSI 1013D Plus Handheld Oscilloscope to be an ideal choice. This compact device features a 7-inch TFT LCD touchscreen, delivering bright colors with 800 x 480 resolution. With 100 MHz bandwidth and a 1 GSa/s sampling rate, it offers precise measurements via its dual channels. You’ll appreciate the built-in high-voltage protection, tolerating up to 400 V. Its 6000 mAh battery guarantees up to four hours of use, while you can store up to 1000 screenshots and waveform data sets. Gesture controls make operation seamless and efficient.
Best For: Engineers and hobbyists seeking a portable and efficient oscilloscope for precise measurements and analysis.
Pros:
- High portability with an ultra-thin design and handheld functionality makes it easy to carry and use on the go.
- Impressive specifications including 100 MHz bandwidth, 1 GSa/s sampling rate, and dual channels for comprehensive signal analysis.
- User-friendly interface with a capacitive touchscreen and gesture controls for seamless operation and quick access to measurements.
Cons:
- Limited battery life of up to four hours may require frequent recharging during extended use.
- Storage capacity of 1 GB may not be sufficient for users needing to save a large number of waveforms or screenshots.
- Resolution of 800 x 480 might be lower compared to some high-end oscilloscopes, potentially affecting detailed signal analysis.
FNRSI Upgraded 3In1 Oscilloscope/Multimeter/DDS Signal Generator
With its dual channel capability and 50 MHz bandwidth, the FNRSI Upgraded 3In1 Oscilloscope/Multimeter/DDS Signal Generator stands out as an ideal tool for automotive technicians and hobbyists alike. This compact device combines an oscilloscope, multimeter, and DDS signal generator, making it versatile for various applications. You’ll appreciate the 250 MS/s sampling rate and 1 Kpts record depth for precise measurements. The 4.5-digit multimeter accurately measures voltage, current, and resistance, while the signal generator offers adjustable frequency and amplitude. Plus, the built-in high-voltage protection guarantees safety during use, making this tool a reliable choice for diagnostics.
Best For: Automotive technicians and hobbyists seeking a versatile diagnostic tool that combines oscilloscope, multimeter, and signal generator functionalities.
Pros:
- Compact and portable design allows for easy transport and use in various locations.
- Versatile functionality integrates three essential tools in one device, saving space and cost.
- Built-in high-voltage protection ensures user safety during measurements.
Cons:
- Limited bandwidth of 50 MHz may not satisfy advanced users requiring higher specifications.
- Small 2.8-inch LCD display might be challenging to read in bright lighting conditions.
- Battery life of up to 6 hours may require frequent recharging during extended use.

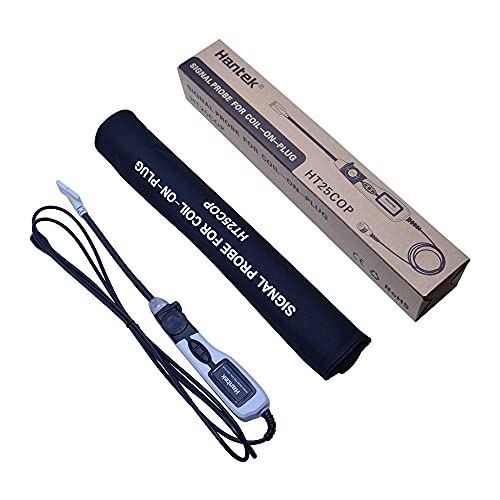

Hantek HT25COP Ignition Waveform Signal Probe for Automobile Engines
The Hantek HT25COP Ignition Waveform Signal Probe stands out as an essential tool for automotive technicians who need precise diagnosis of ignition systems. This probe allows you to measure directly on ignition coils without messy extension cables, ensuring high accuracy with its special anti-interference design. Its ergonomic structure lets you maneuver effortlessly, adapting to various angles as needed. Plus, the highlight LED enables operation even in low-light conditions, enhancing convenience. Ideal for automotive diagnostics, the Hantek HT25COP simplifies ignition system analysis, making your work more efficient and effective. It’s a must-have for any serious technician in the field.
Best For: Automotive technicians who require accurate and efficient diagnostics of ignition systems.
Pros:
- High accuracy with anti-interference design for reliable measurements.
- Direct connection to ignition coils eliminates the need for extension cables.
- Ergonomic design allows for flexible use in various angles, plus a highlight LED for low-light conditions.
Cons:
- May be less useful for non-automotive applications.
- Requires a compatible oscilloscope for operation.
- Initial cost may be a consideration for budget-conscious technicians.
Hantek HT25 Auto Ignition Probe Oscilloscope
For automotive technicians seeking precision in diagnosing ignition systems, the Hantek HT25 Auto Ignition Probe Oscilloscope stands out with its impressive 2.5-meter leading line length. This inductive capacitance sensor features a decay ratio of 10,000:1, allowing you to test spark ignition secondary overlapping waves effectively. With three connection options—BNC joint, clip, and grounding clip—you can easily attach it for accurate readings. Just remember to connect clips to the spark plug insulation wire, not directly to the plugs, and keep a safe distance from high-voltage sources. This guarantees safety and reliable diagnostics for engine ignition positions.
Best For: Automotive technicians looking for precise diagnostics of ignition systems.
Pros:
- High decay ratio of 10,000:1 ensures accurate measurement of spark ignition signals.
- Versatile connection options (BNC joint, clip, and grounding clip) provide flexibility for various testing needs.
- 2.5-meter leading line length allows for comfortable maneuverability during diagnostics.
Cons:
- Requires careful handling to avoid electrical hazards, especially around high-voltage sources.
- Limited to ignition system diagnostics, which may not suit technicians needing broader testing capabilities.
- Initial learning curve for users unfamiliar with oscilloscope operation and ignition system analysis.
FNRSI Upgraded 2in1 DSO-510 Digital Portable Oscilloscope
Designed with automotive professionals in mind, the FNIRSI Upgraded 2in1 DSO-510 Digital Portable Oscilloscope delivers exceptional functionality in a compact form. With a 10MHz bandwidth and 48 MS/s sampling rate, it guarantees precise measurements. The built-in DDS signal generator allows you to output 13 waveforms and handle voltages up to 400V. You’ll appreciate the one-key AUTO setting for quick waveform measurement, enhancing your efficiency. Its lightweight design and 1000mAH battery provide 4 hours of continuous use, making it perfect for both indoor and outdoor tasks. This oscilloscope is your go-to tool for versatile automotive diagnostics.
Best For: Automotive professionals and hobbyists seeking a portable and multifunctional oscilloscope for precise diagnostics and measurements.
Pros:
- Compact and lightweight design, making it easy to carry and use in various locations.
- Built-in DDS signal generator with 13 different waveforms for versatile testing capabilities.
- One-key AUTO setting for quick and efficient waveform measurement.
Cons:
- Limited bandwidth of 10MHz may not be suitable for high-frequency applications.
- Maximum output frequency of the signal generator is capped at 50KHz, which may limit some testing scenarios.
- Battery life of 4 hours may require frequent recharging during extended use.
Hantek 1008C PC USB 8CH Automotive Diagnostic Oscilloscope
Hantek 1008C PC USB 8CH Automotive Diagnostic Oscilloscope stands out as an essential tool for electricians and automotive technicians seeking a versatile solution for diagnostics. This compact device features eight channels, 12-bit resolution, and a 4K memory depth, allowing you to tackle various automotive systems effortlessly. With over 80 diagnostic functions, including ignition and sensor analysis, it streamlines your troubleshooting process. The programmable signal generator enhances functionality by simulating crankshaft and camshaft signals. Plus, its USB connectivity guarantees easy integration with your Windows PC, making the Hantek 1008C a reliable choice for both professionals and electronics enthusiasts alike.
Best For: Electricians, automotive technicians, and electronics enthusiasts looking for a multi-functional diagnostic tool for automotive systems.
Pros:
- Versatile Functionality: Combines automotive diagnostic functions with general-purpose oscilloscope features and a programmable signal generator.
- High Performance: Offers 12-bit resolution and 4K memory depth for accurate signal analysis.
- User-Friendly: Simple USB connectivity for easy integration with Windows PCs and intuitive signal reading with automatic measurement modes.
Cons:
- Limited Compatibility: Only compatible with Windows operating systems, restricting use for Mac or Linux users.
- Learning Curve: May require some time to master all its features and functions, especially for beginners.
- Portability: While compact, the USB-powered nature means reliance on a computer for operation, which may limit mobility.
Hantek Oscilloscope Accessories Set (HT30A, HT307, HT201)
Ideal for automotive technicians and enthusiasts, the Hantek Oscilloscope Accessories Set (HT30A, HT307, HT201) offers essential tools that enhance your measurement capabilities. The HT30A Auto Test Leads let you test various signal types safely, keeping the oscilloscope away from the vehicle. The HT201 20:1 Attenuator guarantees accurate readings by converting higher input signals to manageable outputs, perfect for automotive diagnostics. Meanwhile, the HT307 Acupuncture Probe Set allows you to probe delicate connectors without damage, making it ideal for quick, reliable measurements. Together, these components optimize your oscilloscope for diverse automotive testing needs, guaranteeing precision in every job.
Best For: Automotive technicians and enthusiasts looking for reliable measurement tools for oscilloscope testing.
Pros:
- Versatile Testing: The HT30A Auto Test Leads allow for testing various signal types while keeping the oscilloscope at a safe distance from the vehicle.
- Accurate Measurements: The HT201 20:1 Attenuator ensures precise readings by converting high voltage signals to lower, manageable outputs.
- Delicate Probing Capability: The HT307 Acupuncture Probe Set is designed for probing small, fragile connectors without causing damage, making it ideal for intricate automotive diagnostics.
Cons:
- Limited Bandwidth: The HT201 20:1 Attenuator has a bandwidth of 10MHz, which may not be suitable for all high-frequency applications.
- Specialized Use: The set is specifically optimized for automotive measurements, which may limit its utility for other types of electronic testing.
- Potential Learning Curve: Users unfamiliar with oscilloscope accessories may require some time to learn how to use each component effectively.
Factors to Consider When Choosing Oscilloscopes With Automotive Probes
When choosing an oscilloscope with automotive probes, you should consider several key factors. Bandwidth and sampling rate play vital roles in your measurements, while probe compatibility and display quality can greatly impact usability. Additionally, think about the power source, portability, and overall design to guarantee it fits your needs in various environments.
Bandwidth and Sampling Rate
Choosing the right oscilloscope for automotive applications hinges on understanding bandwidth and sampling rate, as these factors directly influence your ability to capture and analyze high-speed signals accurately. A bandwidth of at least 20 MHz is recommended to effectively measure fast automotive signals, while a minimum sampling rate of 1 GSa/s guarantees you can accurately reconstruct waveforms. Remember, higher bandwidth enhances signal detail resolution, essential for diagnosing intricate systems like ignition and sensors. Additionally, adhere to the Nyquist rate by confirming your sampling rate is at least twice the maximum frequency of the signals you’re measuring. Balancing both bandwidth and sampling rate is significant; otherwise, you risk inadequate signal analysis and potential diagnostic challenges.
Probe Compatibility and Types
Selecting the right probe for your oscilloscope can greatly impact your automotive diagnostics. Start by guaranteeing the probe’s compatibility with your oscilloscope’s input specifications, including voltage ratings and bandwidth. Different types of probes—inductive, capacitive, and back-pinning—are suited for specific tasks like ignition system analysis or circuit board measurement. For example, high-voltage probes are essential for safely measuring ignition coil signals and can handle voltages up to 400 V. Look for ergonomic designs that allow easy access to tight spaces and protect delicate components. Additionally, choose probes with appropriate attenuation ratios, such as 20:1, to guarantee accurate readings while safeguarding your oscilloscope from high-voltage signals.
Display Quality and Size
A high-quality display plays a significant role in effective automotive diagnostics. The clarity of the waveform you see is vital, and higher resolutions provide better detail for analysis. Opting for a larger display size makes it easier to view complex waveforms and allows you to see multiple measurements at once. Touchscreen interfaces can enhance usability, making adjustments quicker and more intuitive during measurements. Additionally, a well-lit display is essential for low-light conditions, ensuring you can analyze important data without straining your eyes. Consider the aspect ratio, too; wider screens can accommodate more data simultaneously, giving you an extensive view for precise diagnostics. Ultimately, investing in a high-quality display will greatly improve your diagnostic capabilities.
Power Source and Battery
When evaluating oscilloscopes with automotive probes, the power source and battery life can greatly influence your diagnostic experience. Battery-powered models offer unmatched convenience, especially in remote locations. Look for oscilloscopes with larger battery capacities, like those featuring 3000mAh, which can last up to 6 hours of continuous use. Additionally, consider the charging method; oscilloscopes with Type-C ports allow for fast charging and efficient data transfer, making quick setups a breeze during automotive testing. Voltage tolerance is also essential—models that handle up to 400V guarantee safe operation with high-voltage systems. Finally, opt for devices with intelligent power management features, such as automatic shutdown, to maximize usage time in demanding automotive environments.
Portability and Design
Portability and design play pivotal roles in choosing oscilloscopes with automotive probes, especially for technicians on the go. You’ll want a lightweight, compact oscilloscope that’s easy to transport and handle in various settings. Look for models with built-in batteries that last 4-6 hours, ensuring you can work without frequent recharges. An ergonomic design, featuring flexible probes and easy-to-read displays, enhances your experience and streamlines diagnostics. Additionally, a modern interface with one-key auto settings can greatly speed up your workflow and improve accuracy. By prioritizing these design aspects, you’ll find an oscilloscope that not only meets your diagnostic needs but also adapts to the dynamic environment of automotive repair.
Measurement Functions Available
Several key measurement functions are essential for oscilloscopes used in automotive applications. You’ll want to guarantee your oscilloscope can measure a variety of signals, like ignition waveforms, sensor outputs, and actuator signals, for thorough diagnostics. Look for oscilloscopes with automatic measurement functions to simplify capturing and analyzing complex waveforms, boosting your troubleshooting efficiency. Pay attention to bandwidth and sampling rate capabilities, as these directly impact the precision of high-frequency automotive signals. Compatibility with specialized automotive probes is vital for safe measurements, especially for ignition systems and fragile connectors. Finally, evaluate the oscilloscope’s ability to handle high-voltage measurements, as automotive environments often exceed 400V, necessitating built-in protection features to keep you safe.
Data Transfer Capabilities
Choosing an oscilloscope with robust data transfer capabilities is essential for effective automotive diagnostics, especially since you’ll want to analyze complex systems in real-time. Look for models featuring USB or Type-C interfaces for efficient data transfer and compatibility with PC software. Fast data transfer speeds are critical, enhancing your ability to capture and analyze transient automotive events accurately. Additionally, make sure the oscilloscope supports firmware upgrades through its data transfer port, keeping functionalities updated. It’s also beneficial to select oscilloscopes that allow for waveform image storage and export, making documentation and analysis of automotive signals much easier. Prioritizing these data transfer capabilities will greatly boost your diagnostic efficiency and effectiveness.
Safety Features and Protections
When working with automotive probes, it’s essential to prioritize safety features and protections to prevent accidents and equipment damage. Look for oscilloscopes with built-in high-voltage protection modules, especially for measuring ignition systems. Ascertain the automotive probes have an anti-interference design to minimize inaccurate readings caused by electrical noise. Opt for probes with attenuation features to safely manage high-voltage signals, allowing you to connect to ignition coils without risking damage. Verify that both the oscilloscope and probes meet safety standards like CE, RoHS, or UL, assuring compliance with regulations. Additionally, consider ergonomic designs and flexible probes that let you maneuver safely around high-voltage components while maintaining ease of use during diagnostics.
