Crankshaft sensor diagnostics depend on seeing the signal clearly, not guessing from fault codes alone. The right oscilloscope can reveal dropouts, noise, weak amplitude, and sync problems that a scan tool may miss.
This roundup of automotive oscilloscopes for crankshaft sensors focuses on practical choices for mobile techs, DIYers, and shop use, with options ranging from compact handheld units to PC-based multi-channel kits.
Best 10 Automotive Oscilloscopes for Crankshaft Sensors Picks for 2026
PC-Based Multi-Channel Diagnostic Kit
Hantek 1008C+HT201+HT30A 8CH Auto Scope
- 8 channels with 12-bit resolution
- Programmable generator simulates crank/cam signals
- Over 80 automotive diagnostic functions
Best For: Windows-based multi-channel diagnosis with crankshaft signal simulation
Handheld All-in-One Diagnostic Scope
DM303 Handheld Scope Multimeter K/CAN
- 500KHz scope with true RMS multimeter
- Reads K/CAN data and supports cranking tests
- Portable battery-powered handheld design
Best For: Portable crankshaft and no-start diagnostics with bus reading
Budget PC Diagnostic Scope
Hantek 1008C 8CH Automotive Oscilloscope
- 8-channel vehicle-testing oscilloscope
- 80+ automotive diagnostic functions
- Video help and report/screenshot tools
Best For: Affordable PC-based sensor and starter/charging diagnostics
Compact Diagnostic Meter-Scope
DM303 Handheld Automotive Oscilloscope
- 500KHz scope for crank/cam and sensor signals
- Built-in multimeter with automotive test leads
- 2.8-inch display and battery-powered portability
Best For: Compact crankshaft and ignition diagnostics in the garage
Garage Scope Pick
Hantek 1008C+ 8CH Automotive Diagnostic PC Oscilloscope
- 8 channels for broader vehicle testing
- Can simulate camshaft and crankshaft signals
- Records waveforms and saves reports/screenshots
Best For: Techs needing a PC-based multi-channel diagnostic scope
Handheld Meter Scope
AUTOOL Multimeter Oscilloscope Kit
- TRMS multimeter plus oscilloscope in one
- Tests crankshaft, camshaft, ignition, and sensor signals
- Supports K line and CAN bus checks
Best For: Portable all-in-one testing and automotive signal checks
Portable Touchscreen Choice
FNIRSI 2C53P 2CH Automotive Oscilloscope
- 2 channels with 50MHz bandwidth
- One-key AUTO and touchscreen controls
- Built-in DDS generator with 12 waveforms
Best For: Portable fast setup with generator support
8-Channel PC Diagnostic Scope
Hantek 1008C 8-Channel Automotive Scope
- 8 channels for vehicle testing
- Simulates camshaft and crankshaft signals
- Records waveforms and prints reports
Best For: PC-based automotive diagnostics with crankshaft signal simulation
3-in-1 Handheld Scope Meter
ZT-703S Portable Automotive Oscilloscope
- Combines scope, multimeter, and generator
- Dual-channel with AUTO waveform recognition
- Up to 50 MHz bandwidth in high-speed mode
Best For: Portable all-in-one troubleshooting in the shop
Compact Portable Scope Generator
- Compact handheld scope with 2.8-inch display
- AUTO setup and Auto/Normal/Single trigger modes
- DDS generator outputs 14 waveforms
Best For: Basic portable testing with simple signal generation
PC-Based Multi-Channel Diagnostic Kit – Hantek 1008C+HT201+HT30A 8CH Auto Scope
If you want automotive oscilloscopes for crankshaft sensors and other engine signals, the Hantek 1008C+HT201+HT30A is a PC-based option that pairs an 8-channel scope with a programmable generator and broad automotive diagnostics. It is built around Windows software and is aimed at users who want to capture, compare, and simulate signals during vehicle testing.
Best For: Technicians and DIY users who want a Windows-based 8-channel automotive diagnostic scope with signal generation for crankshaft/camshaft simulation.
Pros:
- 8 analogue channels for multi-signal testing and comparison
- Programmable signal generator can simulate crankshaft and camshaft signals
- Over 80 automotive diagnostic functions covering ignition, sensors, bus detection, and charging systems
- 12-bit resolution and 4K memory depth for detailed captures
Cons:
- Requires a Windows PC and USB connection to operate
- 2.4MSa/s real-time sampling rate is modest for a scope-focused workflow
- More of a diagnostic platform than a simple handheld tool
This model makes sense if you want a feature-rich diagnostic package rather than a standalone handheld scope. The added generator and broad test coverage are especially useful when crankshaft and camshaft signal simulation is part of the job.
Handheld All-in-One Diagnostic Scope – DM303 Handheld Scope Multimeter K/CAN
The DM303 is a practical pick among automotive oscilloscopes for crankshaft sensors because it combines a 500KHz oscilloscope, true RMS multimeter, and K/CAN bus reader in one handheld unit. It is designed for no-start checks, sensor waveform analysis, and live ECU data reading without needing separate tools.
Best For: Mobile mechanics and garage users who want a handheld all-in-one tester for crankshaft, injector, relay, and bus diagnostics.
Pros:
- 3-in-1 design combines scope, multimeter, and K/CAN reader
- 500KHz oscilloscope captures crankshaft, camshaft, wheel speed, oxygen sensor, and ignition waveforms
- Includes cranking test, injector pulse simulation, and relay test functions
- Battery-powered and portable for workshop or roadside use
Cons:
- 2.8-inch screen is compact compared with larger bench or PC scopes
- Best suited to diagnostic tasks rather than lab-style deep analysis
- Feature set may be more than needed for basic electrical checks
For buyers who value portability and broad diagnostic coverage, this DM303 stands out as a versatile field tool. Its cranking, sensor, and communication features make it especially relevant when chasing intermittent no-start problems.
Budget PC Diagnostic Scope – Hantek 1008C 8CH Automotive Oscilloscope
Hantek 1008C PC USB 8CH Automotive Diagnostic Digital Oscilloscope/DAQ/Programmable Generator
Check Price On AmazonIf you’re comparing automotive oscilloscopes for crankshaft sensors, the Hantek 1008C is a budget-friendly PC USB option with 8 channels and a strong automotive test library. It is built for vehicle testing and includes diagnostic help features that can make waveform-based troubleshooting easier for newer users.
Best For: Budget-conscious users who want a PC-based 8-channel automotive scope for sensor and starter/charging checks.
Pros:
- 8-channel oscilloscope designed for vehicle testing
- Over 80 automotive diagnostic functions, including ignition, sensor, and bus detection
- Video help function plus report, print, and screenshot options
- Lightweight USB-based setup for Windows PCs
Cons:
- Works with Windows XP-era software support, so compatibility should be checked carefully
- 90-day manufacturer warranty is shorter than many buyers may prefer
- Less portable than a handheld diagnostic tool
This version of the Hantek 1008C is a solid fit if you want an affordable multi-channel diagnostic platform rather than a handheld meter-scope combo. Its automotive presets and documentation features make it useful for routine crankshaft and sensor work.
Compact Diagnostic Meter-Scope – DM303 Handheld Automotive Oscilloscope
For shoppers looking at automotive oscilloscopes for crankshaft sensors, this DM303 handheld multimeter-scope focuses on real-world car diagnostics in a compact format. It combines a digital multimeter, a 500KHz oscilloscope, and automotive signal checking functions to help with ignition, cranking, and sensor testing.
Best For: Mechanics and DIY users who want a battery-powered handheld scope for crankshaft, camshaft, and ignition signal checks.
Pros:
- 500KHz oscilloscope suitable for crankshaft, camshaft, wheel speed, and oxygen sensor signals
- Integrated multimeter measures voltage, current, resistance, diode, continuity, and frequency
- Includes automotive test leads for circuit, ignition pulse, battery clip, and jumper work
- Large 2.8-inch display with adjustable brightness
Cons:
- Single handheld screen limits viewing space compared with larger scopes
- Best used for diagnostic work rather than high-end lab measurements
- Many included leads may be unnecessary for users who only need basic waveform capture
This DM303 is a straightforward choice when you want a compact diagnostic meter with oscilloscope capability for engine and electrical testing. The included lead set and cranking-focused measurements make it a practical garage tool.
Garage Scope Pick – Hantek 1008C+ 8CH Automotive Diagnostic PC Oscilloscope
If you want automotive oscilloscopes for crankshaft sensors that also cover broader vehicle diagnostics, the Hantek 1008C+ is a practical PC-based option. It offers 8 channels, supports waveform recording for long periods, and can simulate camshaft and crankshaft signals, which is useful for comparison work during diagnosis.
Best For: Techs who want an 8-channel USB oscilloscope for sensor testing, signal simulation, and report-friendly diagnostics.
Pros:
- 8-channel design for wider vehicle testing coverage
- Can simulate camshaft and crankshaft signals
- Supports long waveform recording and one-key report/screenshot saving
- Includes over 80 automotive diagnostic functions, including ignition and sensor checks
Cons:
- Requires a Windows PC to operate
- Lower native screen resolution than standalone handheld units
- USB-powered setup may be less convenient in the bay than a battery unit
Overall, this model is a solid fit if your workflow centers on detailed vehicle testing and you do not mind using a computer. Its crankshaft signal simulation and multi-channel layout make it especially useful for structured diagnostic work.

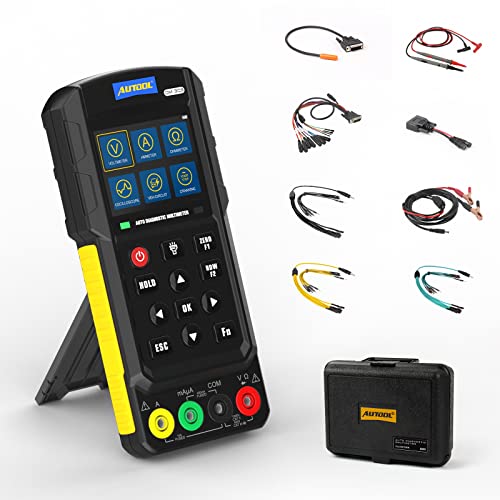

Handheld Meter Scope – AUTOOL Multimeter Oscilloscope Kit
For automotive oscilloscopes for crankshaft sensors in a more portable multimeter-style format, this AUTOOL kit combines oscilloscope and TRMS meter functions in one unit. Its 500KHz waveform bandwidth, K line and CAN bus test support, and signal coverage for ignition, camshaft, crankshaft, and wheel speed sensors make it a flexible diagnostic tool for everyday electrical checks.
Best For: Mechanics who want a portable combo meter and oscilloscope for signal testing plus general electrical diagnostics.
Pros:
- Combines TRMS multimeter and oscilloscope functions
- Measures ignition, camshaft, crankshaft, and wheel speed sensor signals
- Supports K line and CAN bus testing
- Includes auto range, color screen, flashlight, and multiple test leads
Cons:
- 500KHz waveform bandwidth is lower than higher-end oscilloscopes
- Best suited to signal observation rather than deep lab-style analysis
- Bulkier than a simple handheld meter
This is a strong choice if you want one tool for both meter work and basic waveform testing. The included wiring options and automotive-focused signal support make it especially handy for fast troubleshooting in the field.
Portable Touchscreen Choice – FNIRSI 2C53P 2CH Automotive Oscilloscope
If you are shopping for automotive oscilloscopes for crankshaft sensors and want a compact handheld unit, the FNIRSI 2C53P is built around speed and portability. It offers 2 channels, 50MHz bandwidth, 250MS/s sampling, and a one-key AUTO function, plus a signal generator and touch screen for easier on-the-go use.
Best For: Users who want a compact touchscreen oscilloscope with fast setup and built-in generator features.
Pros:
- 2-channel scope with 50MHz bandwidth and 250MS/s sampling
- One-key AUTO simplifies setup and measurement
- Includes a DDS signal generator with 12 waveforms
- Touchscreen design with built-in battery for portable use
Cons:
- Only 2 channels, so it is less expansive than 8-channel units
- About 4 hours of battery life may be limiting for long sessions
- Screen size is smaller than a tablet-style workshop display
For quick diagnostics and portable waveform work, this model offers a good mix of speed and convenience. Its battery power and compact touchscreen layout make it easy to bring into the bay or use for mobile checks.
8-Channel PC Diagnostic Scope – Hantek 1008C 8-Channel Automotive Scope
If you need automotive oscilloscopes for crankshaft sensors and want a tool that can also cover broader vehicle diagnostics, the Hantek 1008C is built for that kind of workflow. Its 8-channel layout, reference waveforms, and ability to simulate camshaft and crankshaft signals make it a practical pick for signal comparison, sensor testing, and recorded waveform review.
Best For: Technicians who want an 8-channel PC-based automotive scope with diagnostic functions and crank/crankshaft signal simulation.
Pros:
- 8-channel oscilloscope designed for vehicle testing
- Can simulate camshaft and crankshaft signals
- Over 80 automotive diagnostic functions and reference waveforms
- Supports waveform recording, screenshots, printing, and report generation
Cons:
- Requires a USB-connected PC setup rather than a standalone handheld body
- Screen size is listed as 1, so it is not the most self-contained viewing option
- Geared more toward diagnostic depth than simple grab-and-go use
The 1008C stands out when you want a diagnostic-focused scope that goes beyond basic waveforms. For users working on crankshaft sensor signals, its channel count and built-in reference material make it especially useful for comparison and documentation.
3-in-1 Handheld Scope Meter – ZT-703S Portable Automotive Oscilloscope
For automotive oscilloscopes for crankshaft sensors, a handheld 3-in-1 unit like the ZT-703S is attractive because it combines scope, multimeter, and signal generator functions in one portable package. Its dual-channel design, automatic recognition, and high-speed mode give it flexibility for general sensor and waveform checks when you want a compact tool in the shop.
Best For: Users who want a portable dual-channel oscilloscope with multimeter and signal-generator functions for everyday automotive troubleshooting.
Pros:
- 3-in-1 design combines oscilloscope, multimeter, and signal generator
- Dual-channel scope with AUTO recognition for unknown waveforms
- High-speed mode reaches 50 MHz bandwidth and 280MSa/s sampling
- Type-C charging and data transfer for convenience
Cons:
- Two operating modes mean performance and power use vary by setting
- Not as channel-rich as larger diagnostic scopes
- Best suited to general testing rather than dedicated multi-signal vehicle diagnostics
The ZT-703S makes sense if portability matters more than having a large diagnostic platform. It offers solid measurement flexibility for sensor work, while the signal generator and multimeter add useful shop versatility.
Compact Portable Scope Generator – FNIRSI DSO153 Handheld Scope
If you are comparing automotive oscilloscopes for crankshaft sensors and want a compact entry-level handheld, the FNIRSI DSO153 focuses on portability and simple operation. Its AUTO button, trigger modes, and built-in DDS signal generator make it a straightforward option for quick waveform checks and basic signal generation.
Best For: Beginners or mobile users who need a small handheld oscilloscope with simple controls and basic signal-generator support.
Pros:
- Very compact handheld design with a 2.8-inch display
- AUTO one-click setup simplifies measurement
- Includes DDS signal generator with 14 waveforms
- Auto/Normal/Single trigger modes for different signal types
Cons:
- 1 MHz bandwidth is much lower than higher-end automotive scopes
- 5MS/s sampling rate limits more demanding waveform work
- Best for basic measurements rather than advanced diagnostics
The DSO153 is a practical pick when you want a lightweight scope for simple checks and occasional signal output. It is not the most powerful option here, but its ease of use and small size make it appealing for basic automotive troubleshooting.
How We Picked the Best Automotive Oscilloscopes for Crankshaft Sensors
We focused on signal visibility, channel count, trigger stability, sample rate, portability, and how well each tool fits real crankshaft testing. For crank sensor work, the goal is reliable capture of low-speed cranking signals and clean waveform analysis during start-up and idle.
We also considered whether each scope includes useful test functions such as multimeter features, signal generation, CAN/K-line support, and automotive-specific accessories that can speed up diagnosis.
Quick Comparison
PC-based automotive oscilloscopes usually offer more channels and better long-session analysis, which is useful for comparing crank and cam signals together. Handheld models are easier to carry and faster to deploy in the bay. Multimeter-scope hybrids can be a smart all-in-one choice if you want one tool for electrical testing and waveform capture.
Key Buying Factors for Automotive Oscilloscopes for Crankshaft Sensors
Channel Count
Two channels are often enough for basic crank-to-cam correlation. More channels help when you want to verify ignition, injector, or sensor power and ground at the same time.
Sampling and Bandwidth
Crank sensor signals do not always need extreme bandwidth, but you do need enough sampling speed to catch dropouts and waveform shape during cranking. Faster sampling gives you cleaner detail and better confidence in intermittent-fault testing.
Triggering and Stability
Stable triggering is essential when the engine speed changes. A scope that can lock onto the waveform without constant adjustment saves time and makes comparisons more repeatable.
Portability Vs. Depth
Handheld scopes are best for quick checks and road-side or under-hood work. PC oscilloscopes tend to provide more analysis depth, larger displays, and easier saved captures for customer documentation.
Automotive Functions
Features like voltage, resistance, current, generator output, and CAN/K-line support can make a scope more useful beyond crank sensor testing. If you diagnose modern vehicles often, those extras may be worth the added complexity.
Who Should Buy Which Automotive Oscilloscopes for Crankshaft Sensors?
If you want the most flexibility for professional diagnostics, choose a multi-channel PC-based model. If you prefer fast setup and portability, a handheld automotive oscilloscope is the better fit. If you need a budget-friendly all-rounder, a multimeter-oscilloscope combo can cover crank sensor testing and general electrical checks in one tool.
For frequent use on Automotive Oscilloscopes for Crankshaft Sensors, prioritize clear waveforms, dependable triggering, and enough channels to compare related signals. The best choice is the one that matches your workflow as much as your budget.
